Home > Carbon Steel > Carbon Steel EN10210-1 Pipe

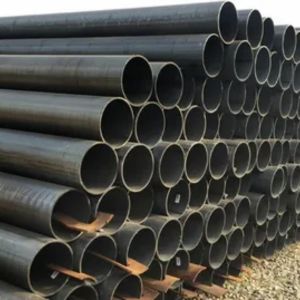

Carbon Steel EN 10210-1 Pipe is a top-notch structural steel pipe crafted in line with the European standard EN 10210-1. It’s specifically designed for hot-finished hollow sections that are essential in construction and structural applications. You’ll find these pipes being put to good use in building frameworks, bridges, machinery, and various industrial structures where strength, toughness, and precise dimensions are a must. Produced under rigorous quality control, EN 10210-1 pipes boast uniform mechanical properties, exact dimensions, and a fantastic surface finish, making them perfect for demanding civil engineering and industrial projects.
These pipes are made from low to medium carbon steel grades, often with carefully controlled levels of manganese, phosphorus, sulfur, and micro-alloying elements. This thoughtful composition results in impressive tensile and yield strength, high toughness, and adequate ductility. Mechanically, they can handle structural loads, mechanical stress, and environmental challenges while keeping their shape intact. With their consistent wall thickness and hot-finished seamless or welded design, these pipes promise durability, reliability, and long-lasting performance in tough applications.
| Attribute | Specification |
|---|---|
| Type | Seamless / Welded / ERW |

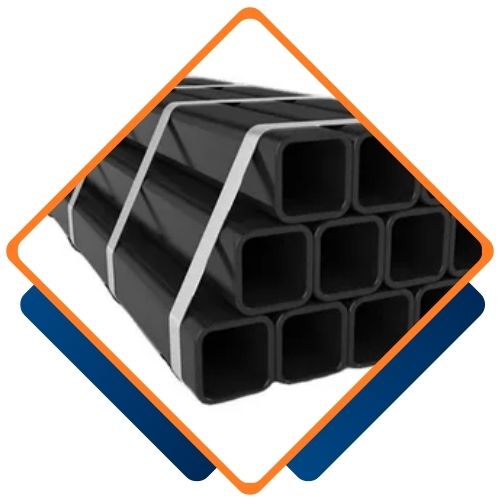

| SHS (Square Hollow Sections) Sizes | 20 x 20 mm to 400 x 400 mm |
| Length | 6000 mm to 14000 mm |
| Dimensional Tolerances | Thickness: All sizes +/- 10% |
| Standard | BS EN 10210 – Hot finished structural hollow sections of non-alloy and fine grain steels |
| Surface Protection | Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Dimension Range | 21.3 mm to 914 mm |
| Packing | In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark |
| Wall Thickness | 0.5 mm to 25 mm |
| Steel Grade | Chemical Composition Limits (%) | |||||
| C Max. | Si Max. | Mn Max. | P Max. | S Max. | N Max. | |
| S235JRH | 0.17 | – | 1.40 | 0.040 | 0.040 | 0.009 |
| S275J0H | 0.20 | – | 1.50 | 0.035 | 0.035 | 0.009 |
| S275J2H | 0.20 | – | 1.50 | 0.030 | 0.030 | – |
| S355J0H | 0.22 | 0.55 | 1.60 | 0.035 | 0.035 | 0.009 |
| S355J2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | – |
| S355K2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | – |
| Steel Grade | Mechanical Properties | Impact Energy (KV J) | ||||
| Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | Test Temperature At Test Temperature of ℃ | |||
| -20 | 0 | 20 | ||||
| S235JRH | 235 | 360-510 | 26 | – | – | 27 |
| S275J0H | 275 | 410-560 | 23 | – | 27 | – |
| S275J2H | 275 | 410-560 | 23 | 27 | – | – |
| S355J0H | 355 | 510-680 | 22 | – | 27 | – |
| S355J2H | 355 | 510-680 | 22 | 27 | – | – |
| S355K2H | 355 | 510-680 | 22 | 40 | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Carbon Steel EN10210-1 Pipe from Samia Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
| 1/8″ IPS(.405″ O.D.) | 3 1/2″ IPS( 4.000″ O.D.) |
|---|---|
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4″ IPS(.540″ O.D.) | 4″ IPS(4.500″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8″ IPS(.675″ O.D.) | 5″ IPS( 5.563″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2″ IPS(.840″ O.D.) | 6″ IPS(6.625″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4″ IPS(1.050″ O.D.) | 8 ” IPS(8.625″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1″ IPS:(1.315′ O.D.) | 10″ IPS(10.750″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4″ IPS(1.660″ O.D.) | 12″ IPS(12.750″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2″ IPS(1.900″ O.D.) | 14″ IPS(14.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2″ IPS(2.375″ O.D.) | 16″ IPS(16.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2″ IPS(2.875″ O.D.) | 18″ IPS (18.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3″ IPS( 3.500″ O.D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
Samia Pipes and Tubes is one of the largest Carbon Steel EN10210-1 Pipe suppliers in Tunis, Tunisia, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.
Yes, we offer custom sizes for Carbon Steel EN10210-1 Pipe to meet your specific requirements. Our team at Samia Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@samiapipes.com.
You’ll see Carbon Steel EN 10210-1 Pipes widely used in structural frameworks, columns, beams, bridges, cranes, and construction machinery. They also find their place in industrial fabrication, mechanical engineering structures, and other projects that demand high-strength steel with outstanding toughness and reliability. The blend of strength, durability, and adherence to European standards makes EN 10210-1 pipes a go-to choice for structural and heavy-duty engineering tasks.
