Stainless Steel 17-4 PH Pipes

Home > Stainless Steel >Stainless Steel 17-4 PH Pipes

Stainless Steel 17-4 PH Pipes Manufacturer, Supplier and Exporter in Tunis, Tunisia

Samia Pipes, a reputable manufacturer and supplier based in Tunis, Tunisia, proudly presents their top-notch **Stainless Steel 17-4 PH Pipes**. These pipes are celebrated for their remarkable blend of high strength, hardness, and resistance to corrosion. Crafted to meet international quality standards, they are a go-to choice for demanding industrial applications. Thanks to their ability to retain excellent mechanical properties even after heat treatment, the Stainless Steel 17-4 PH Pipes from Samia Pipes promise long-lasting reliability, durability, and performance. This makes them perfect for industries like aerospace, marine, petrochemical, oil and gas, and power generation.

17-4 PH Stainless Steel Pipes Exporter in Tunisia, SS UNS S17400 Pipes Supplier in Sfax, 17-4 PH Stainless Steel Pipe Manufacturer in West Tunis, SUS 17-4 PH Pipes Price List in Tunisia, ASTM A312 Stainless Steel 17-4 PH Pipe Distributor in Tunis,Stainless Steel 1.4542 Pipes in Bizerte, Stainless Steel TP17-4 PH Pipe Exporters in Tunisia

**Stainless Steel 17-4 PH Pipes** are a type of precipitation-hardening martensitic stainless steel, made up of chromium, nickel, and copper, along with trace elements that enhance their performance. They boast impressive tensile strength ranging from 1100 to 1300 MPa, outstanding toughness, and exceptional resistance to both atmospheric and chemical corrosion. Their mechanical properties can be fine-tuned through heat treatment, making them adaptable to various industrial needs. Additionally, these pipes offer good fatigue and wear resistance, along with excellent weldability and formability, ensuring they perform reliably under critical operating conditions.

Stainless Steel 17-4 PH Pipes Specification

Specifications	ASTM A312 / ASME SA312
Dimensional specification	ANSI/ASME B36.19M, ANSI/ASME B36.10M
Size	1 / 8″ NB – 24″ NB
Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Manufacturing Shapes	Hydraulic, Round, Square, Hex, Honed
Manufacturing Techniques	Normalized & as Rolled
Schedule Thickness Range	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
End Types	Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends)
Surface Finish	No.1, No.4, No.8 Mirror Finish, 2B
Value Added Services	Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing
Inspection and Test Reports	EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Seamless Pipes, Finish as per customer Requirements
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Heat Treatment	Normalized, Normalized & Tempered
Packing of Seamless Pipes	Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials	Sizes and Specifications other than above can be on request

Stainless Steel 17-4 PH Pipes Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
SS 17-4 PH	0.07	1.0 max	1.0 max	0.03	3.0 – 5.0	Bal	3.0 – 5.0	15.0 – 17.5

SS 17-4 PH Pipes Mechanical Properties

Grade	Tensile Strengtd (ksi) min	Elongation (% in 50mm) min	Yield Strengtd 0.2% Proof (ksi) min	Hardness
17-4 PH	135	16	105	277

Equivalent Grades of Stainless Steel 17-4 PH Pipe

STANDARD	WERKSTOFF NR.	UNS
SS 17-4 PH	1.4542	S17400

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

ASME SA 312 TP17-4 PH Pipes Tunis,Stainless Steel 17-4 PH Pipes Exporters in Tunisia, 17-4 PH Stainless Steel Pipe Manufacturers in West Tunis, SS UNS S17400 Pipes Supplier in Tunis, SS 17-4 PH Schedule 20 Pipe Stockist in in Bizerte, SS 17-4 PH Pipes Distributor in Tunisia, 17-4 PH Stainless Steel Pipes in Bursa

Why Choose Stainless Steel 17-4 PH Pipes from Samia Pipes and Tubes?

Choosing Stainless Steel 17-4 PH Pipes from Samia Pipes and Tubes ensures the highest quality products and industry standards. Their pipe offers exceptional corrosion resistance and durability, making it ideal for demanding applications. Samia offers a wide range of sizes and modifications to meet specific project requirements. Focusing on customer service, they ensure on-time delivery and support throughout the buying process. Their competitive pricing and commitment to quality make them a choice in the market. Additionally, Samia’s expertise in stainless steel components ensures reliable and durable performance.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 17-4 PH Pipes Supplier in Tunis, Tunisia

Samia Pipes and Tubes, one of the largest suppliers of Stainless Steel 17-4 PH Pipes in Tunis, Tunisia, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

Stainless Steel 17-4 PH Pipe Sizes in MM

Nominal Pipe Size		Outside Diameter (mm)	Nominal Wall Thickness Schedule
NPS	DN	OD	SCH5s	SCHl0s	SCH 10	SCH 20	SCH 30	SCH40s	SCH STD	SCH 40	SCH 60	SCH80s	SCH XS	SCH 80	SCH 100	SCH 120	SCH 140	SCH 160	SCH XXS
1/8	6	10.3		1.24				1.73	1.73	1.73		2.41	2.41	2.41
1/4	8	13.7		1.65				2.24	2.24	2.24		3.02	3.02	3.02
3/8	10	17.1		1.65				2.31	2,31	2.31		3.20	3.20	3.20
1/2	15	21.3	1.65	2.11				2.77	2.77	2.77		3.73	3.73	3.73				4.78	7.47
3/4	20	26.7	1.65	2.11				2.87	2.87	2.87		3.91	3.91	3.91				5.56	7.82
1	25	33.4	1.65	2.77				3.38	3.38	3.38		4.55	4.55	4.55				6.35	9.09
1 1/4	32	42.2	1.65	2.77				3.56	3.56	3,56		4.85	4.85	4.85				6.35	9.70
1 1/2	40	48.3	1.65	2.77				3.68	3.68	3.68		5.08	5.08	5.08				7.14	10.15
2	50	60.3	1.65	2.77				3.91	3.91	3.91		5.54	5.54	5.54				8.74	11.07
2 1/2	65	73	2.11	3.05				5.16	5.16	5.16		7.01	7.01	7.01				9.53	14.02
3	80	88.9	2.11	3.05				5.49	5.49	5.49		7.62	7.62	7.62				11.13	15.24
3 1/2	90	101.6	2.11	3.05				5.74	5.74	5.74		8.08	8.08	8.08
4	100	114.3	2.11	3.05				6.02	6.02	6.02		8.56	8.56	8.56		11.13		13.49	17.12
5	125	141.3	2.77	3.40				6.55	6.55	6.55		9.53	9,53	9.53		12.70		15.88	19.05
6	150	168.3	2.77	3.40				7.11	7.11	7.11		10.97	10.97	10.97		14.27		18.26	21.95
8	200	219.1	2.77	3.76		6.35	7.04	8.18	8.18	8.18	10.31	12.70	12.70	12.70	15.09	18.26	20.62	23.01	22.23
10	250	273.1	3.40	4.19		6.35	7.80	9.27	9.27	9.27	12.70	12.70	12.70	15.09	18.26	21.44	25.40	28.58	25.40
12	300	323.9	3.96	4.57		6.35	8.38	9.53	9.53	10.31	14.27	12.70	12.70	17.48	21.44	25.40	28.58	33.32	25.40
14	350	355.6	3.96	4.78	6.35	7.92	9.53		9.53	11.13	15.09		12.70	19.05	23.83	27.79	31.75	35.71
16	400	406.4	4.19	4.78	6.35	7.92	9.53		9.53	12.70	i6.66		12.70	21.44	26.19	30.96	36.53	40.49
18	450	457.2	4.19	4.78	6.35	7.92	11.13		9.53	14.27	19.05		12.70	23.83	29.36	34.93	39,67	45.24
20	500	508	4.78	5.54	6.35	9.53	12.70		9.53	15.09	20.62		12.70	26.19	32.54	38.10	44.45	50.01
22		559	4.78	5.54	6.35	9.53	12.70		9.53		22.23		12.70	28.58	34.93	41.28	47.63	53.98
24	600	610	5.54	6.35	6.35	9.53	14.27		9.53	17.48	24.61		12.70	30.96	38.89	46.02	52.37	59.54
26		660			7.92	12.70			9.53				12.70
28	700	711			7.92	12.70	15.88		9.53				12.70
30		762	6.35	7.92	7.92	12.70	15.88		9.53				12.70
32	800	813			7.92	12.70	15.88		9.53	17.48			12.70
34		884			7.92	12.70	15.88		9.53	17.48			12.70
36	900	914			7.92	12.70	15.88		9.53	19.05			12.70
38		965							9.53				12.70
40	1000	1016						9.53		12.70
42		1067				12.70	15.88		9.53	19.05			12.70
44	1100	1118							9.53				12.70
46		1168							9.53				12.70
48	1200	1219							9.53			12.70
52		1321
56	1422
60	1524

Weight Chart of Stainless Steel 17 – 4 PH Pipes

Nominal Pipe Size		Outside Diameter	Schedule 5 S		Schedule 10 S		Schedule 20 S		Schedule 40 S		Schedule 80 S		Schedule 160 S		XXS
mm	inch	mm	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)
3	1/8	10.3	1.2	0.20	1.24	0.28	1.5	0.33	1.73	0.37	2.41	0.47	–	–	–	–
6	1/4	13.7	1.2	0.37	1.65	0.49	2.00	0.58	2.24	0.630	3.02	0.80	–	–	–	–
10	3/8	17.1	1.2	0.47	1.65	0.63	2.00	0.74	2.31	0.840	3.20	1.10	–	–	–	–
15	1/2	21.3	1.65	0.80	2.11	1.00	2.30	1.07	2.77	1.27	3.73	1.62	4.75	1.94	7.47	2.55
20	3/4	26.7	1.65	1.03	2.11	1.28	2.55	1.52	2.87	1.69	3.91	2.20	5.56	2.90	7.82	3.64
25	1	33.4	1.65	1.30	2.77	2.09	2.55	1.94	3.38	2.50	4.55	3.24	6.35	4.24	9.09	5.45
32	1.1/4	42.2	1.65	1.65	2.77	2.70	3.00	2.90	3.56	3.39	4.85	4.47	6.35	5.61	9.70	7.77
40	1.1/2	48.3	1.65	1.91	2.77	3.11	3.00	3.55	3.68	4.05	5.08	5.41	7.14	7.25	11.1	10.18
50	2	60.3	1.65	2.40	2.77	3.93	3.00	4.24	3.91	5.44	5.54	7.48	8.74	11.11	11.07	13.44
65	2.1/2	73.0	2.11	3.69	3.05	5.26	4.00	6.81	5.16	8.63	7.01	11.41	9.53	14.91	14.02	20.39
80	3	88.9	2.11	4.51	3.05	6.45	4.00	8.37	5.49	11.29	7.62	15.27	11.1	21.30	15.24	27.68
100	4	114.3	2.11	5.84	3.05	8.36	4.50	12.18	6.02	16.07	8.56	22.32	13.49	33.54	17.12	41.03
125	5	141.3	2.77	9.47	3.40	11.57	5.00	16.80	6.55	21.8	9.53	30.97	15.88	49.11	19.05	57.43
150	6	168.3	2.77	11.32	3.40	13.84	6.35	25.36	7.11	28.26	10.97	42.56	18.25	67.53	21.95	79.22
200	8	219.1	2.77	14.79	3.76	19.96	6.35	33.31	8.18	42.55	12.7	64.64	23.01	111.27	22.23	107.92
250	10	273.1	3.40	22.63	4.19	27.78	6.35	41.77	9.27	60.31	12.7	96.01	28.58	172.33	25.40	155.15
300	12	323.8	3.96	31.25	4.57	36.00	6.35	49.7	9.53	73.88	12.7	132.05	33.32	238.76	25.40	186.97
350	14	355.6	3.96	34.36	4.78	41.3	7.92	67.80	11.13	94.59

Stainless Steel 17-4 PH Pipe Sizes in MM

SS 17-4 PH Schedule 40 Pipe Price List in Tunis, Stainless Steel S17400 Pipes Supplier in Sfax, SS 17-4 PH Pipes Price Per Kg, ASTM A312 Stainless Steel 17-4 PH Pipe Exporter in West Tunis, AISI 17-4 PH Pipes Stockist in Tunis,1 inch SS 17-4 PH Pipe Price List in Bizerte, SS 17-4 PH Pipe Weight Chart, SS 17-4 PH Schedule 20 Pipe Thickness, 17-4 PH Austenitic Stainless Steel Pipe Manufacturers in Tunisia

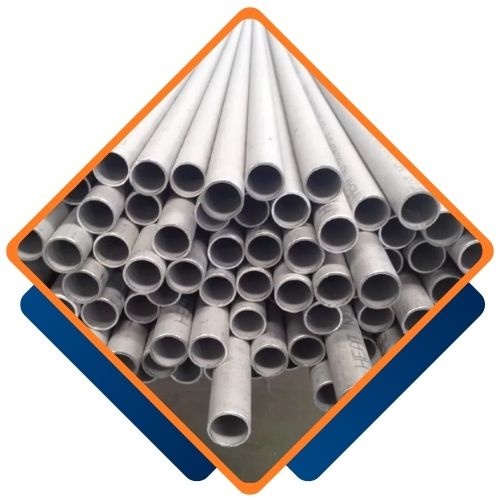

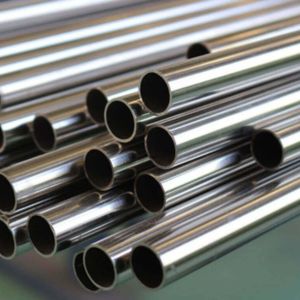

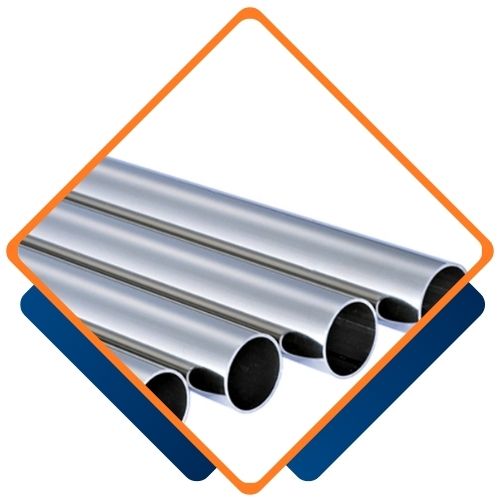

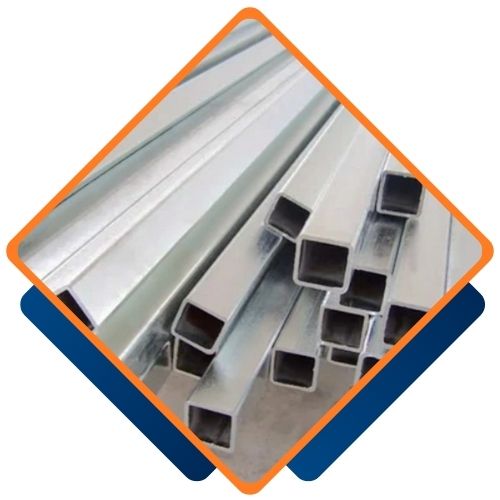

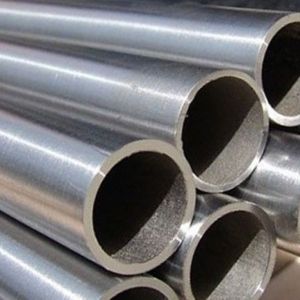

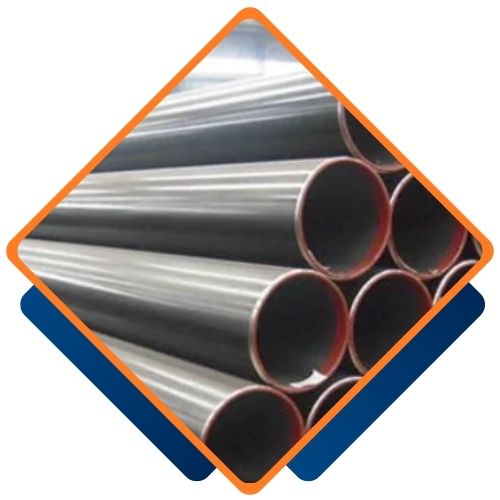

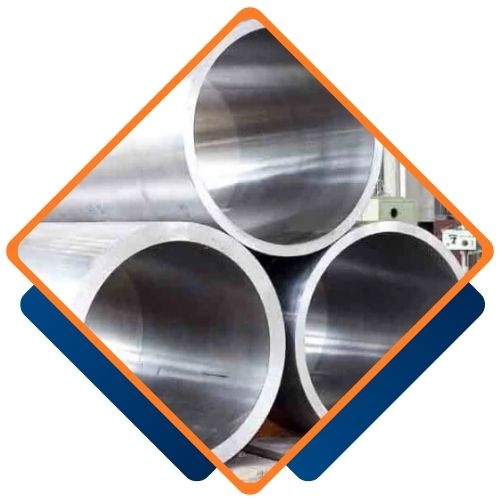

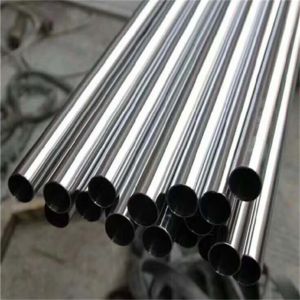

Types of Stainless Steel 17-4 PH Pipes

Are Custom Sizes Available for Stainless Steel 17-4 PH Pipes?

Yes, we offer custom sizes for Stainless Steel 17-4 PH Pipes to meet your specific requirements. Our team at Samia Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@samiapipes.com.

SS UNS S17400 Pipes Exporters in Bizerte, ASME SA 312 TP17-4 PH Pipes Bodrum , SUS 17-4 PH Pipes Distributor in Sfax, 17-4 PH SS Pipes Price Per Kg, 17-4 PH Austenitic Stainless Steel Pipe Supplier in Tunis, SS 17-4 PH Pipe Stockist in Tunisia, Stainless Steel 17-4 PH Pipes Dealer in West Tunis

In industries that demand high strength, corrosion resistance, and longevity, **Stainless Steel 17-4 PH Pipes** are widely utilized. In the aerospace sector, they find applications in turbine blades, structural components, and shafts. The oil and gas industry uses them for pipelines, valves, and drilling equipment that must withstand harsh environments. In marine settings, they are employed in propeller shafts and fasteners that resist seawater corrosion. They also play a crucial role in petrochemical plants, paper and pulp processing, and the food industry, where hygiene and durability are paramount. Their versatility makes them indispensable for both high-pressure and high-temperature applications.
