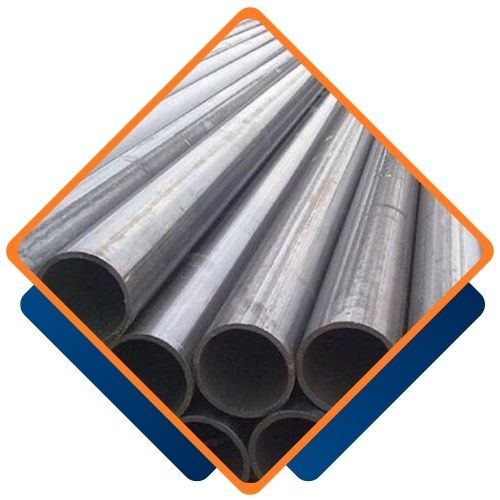

Home > Stainless Steel >Stainless Steel 347 and 347H EFW Pipes
Samia Pipes and Tubes, based in Tunis, Tunisia, is a leading manufacturer and supplier of high-quality industrial pipes and tubes. Among our premium offerings are Stainless Steel 347 and 347H EFW Pipes, engineered for excellent corrosion resistance, high-temperature strength, and long-term durability. Produced using the Electric Fusion Welding (EFW) process, these pipes offer superior structural integrity and dimensional accuracy. Ideal for demanding industrial applications, they ensure reliable performance under elevated temperatures and corrosive environments. At Samia Pipes and Tubes, we provide more than materials—we deliver durable, high-performance solutions that support safe and efficient operations.
Stainless Steel 347 and 347H EFW Pipes are stabilized austenitic stainless steels containing 17–19% chromium, 9–13% nickel, and niobium to prevent carbide precipitation. The 347H variant has higher carbon content for enhanced high-temperature strength. They typically offer a tensile strength of 515–750 MPa and a yield strength of 205–450 MPa, with a density of approximately 8.0 g/cm³. The EFW process ensures uniform mechanical properties, excellent dimensional accuracy, and high structural integrity. These pipes maintain corrosion resistance, thermal stability, and mechanical strength in aggressive industrial environments.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | EN | JIS | GOST |
| SS 347 | S34700 | 1.4550 | X6CrNiNb18-10 | SUS 347 | 08Ch18N12B |
| SS 347H | S34709 | 1.4961 | X6CrNiNb18-12 | SUS 347H | – |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 8xC – 1.10 | 9.0 -13.0 | 63.72 min |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | |||
| Psi – 75000, MPa – 515 | Psi – 30000, MPa – 205 | 35 % | 92 | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 347 and 347H EFW Pipes from Samia Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
We offer custom sizes for Stainless Steel 347 and 347H EFW Pipes to meet your specific needs. Our dedicated team at Samia Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@samiapipes.com.
Stainless Steel 347 and 347H EFW Pipes are widely used in industries requiring long-term high-temperature performance and corrosion resistance. They are ideal for boilers, superheaters, heat exchangers, and high-temperature piping systems in power generation and chemical processing plants. In oil & gas, petrochemical, and aerospace industries, they reliably handle aggressive fluids and elevated temperatures. The 347H variant is preferred for applications demanding extra high-temperature strength. With their combination of durability, thermal stability, and corrosion resistance, Stainless Steel 347 and 347H EFW Pipes from Samia Pipes and Tubes provide efficient, low-maintenance, and high-performance solutions for critical industrial operations.
