Home > Stainless Steel >Stainless Steel 904L EFW Pipes

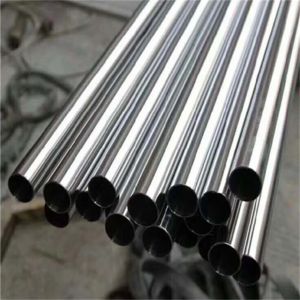

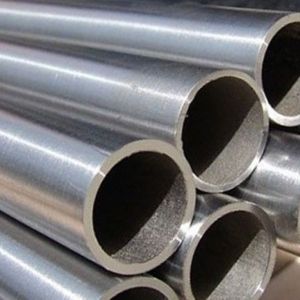

Samia Pipes and Tubes, located in Tunis, Tunisia, stands out as a leading manufacturer and supplier of top-notch Stainless Steel 904L EFW Pipes. These pipes are celebrated for their remarkable corrosion resistance, durability, and precision engineering, all crafted to meet stringent industrial standards. Samia Pipes and Tubes caters to various sectors, including chemical processing, oil and gas, marine, and pharmaceuticals, providing dependable and long-lasting piping solutions. Thanks to their cutting-edge Electric Fusion Welding (EFW) technology, rigorous quality control, and prompt delivery, the company guarantees high-performance pipes that can handle tough conditions, making them a reliable partner for stainless steel EFW piping solutions both locally and globally.

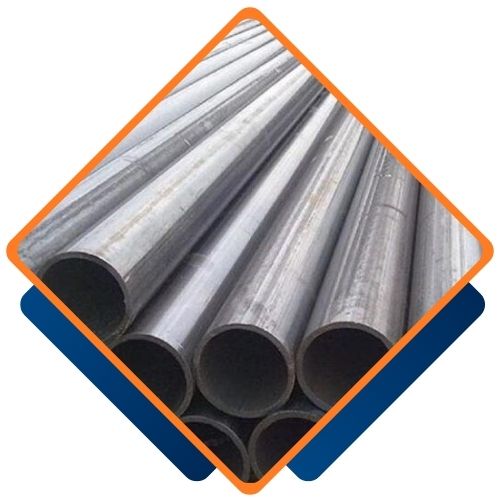

The Stainless Steel 904L EFW Pipes are crafted from a high-alloy austenitic stainless steel, featuring elevated levels of chromium, nickel, and molybdenum, along with very low carbon content. This unique blend offers outstanding resistance to corrosion, oxidation, and chemical attacks. On the mechanical side, 904L EFW pipes boast high tensile strength, excellent ductility, toughness, and fatigue resistance. The Electric Fusion Welding (EFW) method ensures precise dimensions, consistent wall thickness, and robust welded seams. These characteristics make the pipes perfect for applications that demand durability, leak-free performance, and reliable operation in harsh chemical, high-pressure, and corrosive settings.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | KS |
| SS 904L | N08904 | 1.4539 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 | SUS 904L | 904S13 | STS 317J5L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 904L | Psi – 71000, MPa – 490 | Psi – 32000, MPa – 220 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 904L EFW Pipes from Samia Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Specific Heat (0-100°C) | 450 | J.kg-1.°K-1 |
| Thermal Conductivity | 11.5 | W.m -1.°K-1 |
| Thermal Expansion | 15.8 | mm/m/°C |
| Modulus Elasticity | 190 | GPa |
| Electrical Resistivity | 9.52 | μohm/cm |
| Density | 7.95 | g/cm3 |
We offer custom sizes for Stainless Steel 904L EFW Pipe to meet your specific needs. Our dedicated team at Samia Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@samiapipes.com.
Stainless Steel 904L EFW Pipes find extensive use in industries that require corrosion resistance, strength, and dependable welded performance. They are commonly utilized in chemical processing plants, oil and gas pipelines, pharmaceutical and food-grade piping systems, heat exchangers, and marine installations. The EFW process guarantees leak-proof welded seams and structural integrity, while the 904L alloy excels in resisting pitting, crevice corrosion, and stress corrosion cracking. These pipes are particularly suited for high-pressure, high-temperature, and chemically aggressive environments, ensuring long-lasting performance.
