Copper Nickel Mechanical Tubing is built for environments that don’t forgive weakness. Known for its exceptional resistance to corrosion, especially in marine and high-moisture conditions, this tubing delivers long-term reliability where other materials fail. Its natural strength, excellent thermal stability, and smooth finish make it a trusted choice for demanding mechanical systems. Designed to perform under pressure, Copper Nickel Mechanical Tubing combines durability with precision, ensuring consistent performance, reduced maintenance, and a longer service life. It’s not just tubing—it’s engineered confidence for critical applications.
Copper Nickel Mechanical Tubing is mainly made up of copper and nickel, with added iron and manganese to enhance its mechanical strength and corrosion resistance. It showcases remarkable tensile and yield strength, outstanding toughness, and a high level of resistance to pitting, erosion, and stress corrosion cracking. This tubing retains its structural integrity even under thermal cycling and high-pressure conditions, guaranteeing dependable performance. Its excellent weldability, formability, and machinability make it perfect for fabrications and assemblies in challenging environments. These attributes make Copper Nickel Mechanical Tubing a great choice for both strength-critical and corrosion-resistant applications in marine and industrial fields.
Specifications : ASTM / ASME SB 111 / 151 / 466
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Well Thickness : Between 0.15mm and 1.50 mm
Length : Single Random, Double Random & Required Length
Schedule : SCH20, SCh20, SCh30, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Types : Mechanical

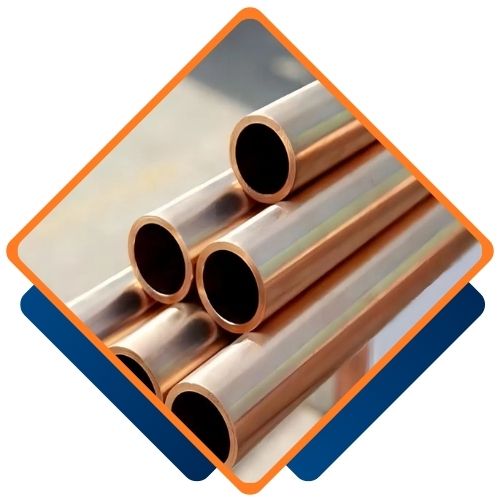

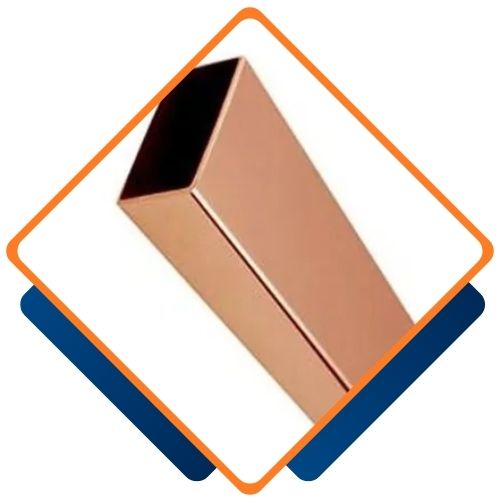

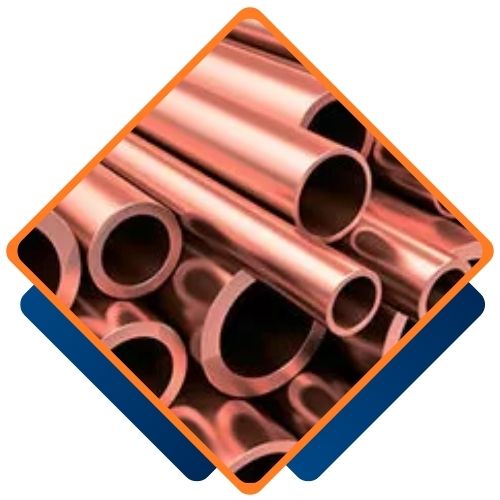

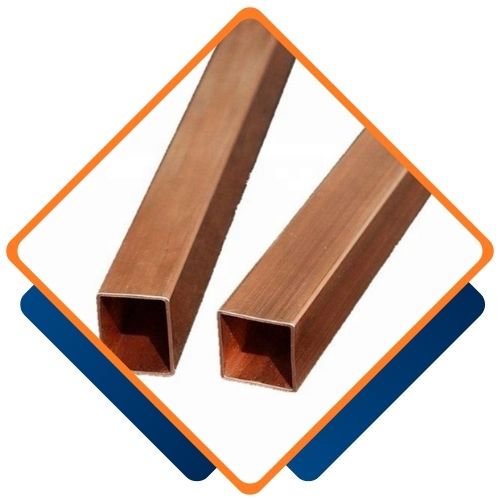

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
Grades : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
| Element | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 90-1000 psi | 30 % |
| Property |
Metric Units |
Imperial Units |
|---|---|---|
|
Melting Point (Liquidus) |
11,500°C |
21,000°F |
|
Melting Point (Solidus) |
11,000°C |
20,100°F |
|
Density |
8.94 gm/cm³ @ 20°C |
0.323 lb/in³ @ 68°F |
|
Specific Gravity |
8.94 |
8.94 |
|
Coefficient of Thermal Expansion |
17.1 x 10 -6 / °C (20-300°C) |
9.5 x 10 -5 / °F (68-392°F) |
|
Themal Conductivity |
40 W/m. °K @ 20°C |
23 BTU/ft³/ft/hr/°F @ 68°F |
|
Thermal Capacity (Specific Heat) |
380 J/kg. °K @ 20°C |
0.09 BTU/lb/°F @ 68°F |
|
Electrical Conductivity (Annealed) |
5.26 microhm?¹.cm?¹ @ 20°C |
9.1% IACS |
|
Electrical Resistivity (Annealed) |
0.190 microhm.cm @ 20°C |
130 ohms (circ mil/ft) @ 68°F |
|
Modulus of Elasticity (tension) |
140 GPa @ 20°C |
20 x 10 6 psi @ 68°F |
|
Modulus of Rigidity (torsion) |
52 GPa @ 20°C |
7.5 x 10 6 psi @ 68°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel Mechanical Tubing from Samia Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Choose Copper Nickel Mechanical Tubing from Samia Pipes and Tubes for its superior seawater corrosion resistance, biofouling protection, and excellent thermal conductivity, making it ideal for marine, industrial, and coastal applications requiring long-lasting performance and reliability.
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″, 1/8″, 3/16″ |
| .020 | 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″, 3/16″ |
| .028 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ |
| .035 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .049 | 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .065 | 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ |
| .083 | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 7/8″, 2″, 2 1/2″ ,3″ |
| .095 | 1/2″, 5/8″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .109 | 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .120 | 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ |
| .125 | 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″, 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Yes, we offer custom sizes for Copper Nickel Mechanical Tubing to meet your specific requirements. Our team at Samia Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@samiapipes.com.
Copper Nickel Mechanical Tubing finds extensive use in marine engineering, offshore platforms, shipbuilding, and desalination plants, particularly in applications that demand strength and resistance to seawater corrosion. It’s frequently utilized in structural frameworks, heat exchangers, condensers, hydraulic systems, and cooling water lines. Thanks to its outstanding mechanical properties and corrosion resistance, this tubing is ideal for powering various systems in demanding environments.
